IBAIM Shelf Plans PDF (Digital Download)

8 reviews 0 sold. Only 999999 remain

$20.00

Brand: Kaiyoot Designs Inc.

Product Code: KD-BGF-PDF-001

Stock 999999

Available Options

PDF File Terms of Use

I have read and agree to the Terms of Use

Qty

Add to wishlist
Add to compare

Tags: digital download pdf downloadable ibaim shelf plans DIY plans movable shelf storage plans woodworking plans

Cart Account Search Recent View Go to Top

Description
Reviews (8)

Item specifics

Downloadable File Yes

Product Description

Building Instructions for the IBAIM Shelf
(It's Big And It's Moveable)

Digital Download Only
This is an instant PDF download — no physical item will be shipped.
You will receive detailed step-by-step building instructions as a digital PDF file immediately after purchase.

The IBAIM Shelf was designed for anyone wanting a large, full-wall shelving unit that can be fully disassembled and moved to a new location. It was created as an upgrade over typical modular systems like IKEA Kallax, offering significantly more storage capacity and better room fit while remaining portable.

These are not basic sketches or vague plans — this is a comprehensive 70+ page PDF packed with:

Full-colour photos and illustrations for every single step
Precise cut lists, measurements, and joinery details
Specific recommendations for router bits, glue application, edge treatments, dowel placement, and more
5 detailed pages of calculations to customize the dimensions for your own space
Step-by-step instructions for building each component + final assembly guide

Ideal for storing board games, books, collectibles — or anything else. Suitable for beginner to intermediate woodworkers (with access to the listed tools).

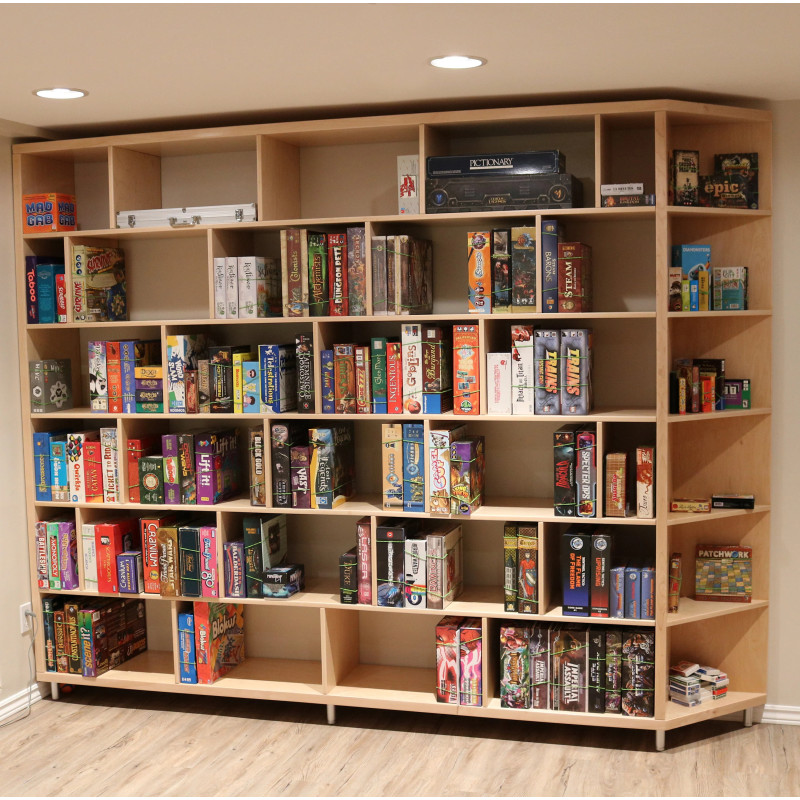

Shown Shelf Dimensions (exact build in the PDF)

Height: 7' 5½" (including furniture legs)
Width: 9' 5"
Depth: 15½"

Materials Needed (for the exact shown unit)

7 × sheets ¾" plywood (Maple Good 2 Sides recommended)
2 × 9' × 8" × 1" solid wood boards (Maple used here)
14 × ¼-20 T-Nuts / Inserts
14 × ¼-20 Connector Bolts
144 × 5/16" Dowel Pins
6 × Furniture Legs (with matching T-nuts)
Some ¾" and 1" diameter wood dowels
Some biscuits (for biscuit joinery)

Required Tools

Table Saw
Hand Drill
Drill Guide / Alignment Tool (highly recommended)
Router
Biscuit Jointer

What You Receive

70+ page high-resolution PDF formatted for 8.5 × 11" printing
Full-colour step-by-step building instructions
Custom design calculations section for personalization
Instant download link after payment confirmation

Due to the instant digital delivery nature of this product, no refunds can be issued once the file has been downloaded.

dmhull	26/03/2025
Well detailed instructions on how to build. Looking forward to building my own version.

daviepreston	21/02/2023
This is an awesome and much-appreciated extraordinarily-detailed guide on creating your own shelving unit. The well-documented process, numerous pictures, and excellent tips make for a terrific guide. With calculations and insight into customizing your own unit, this pdf is worth every penny! Thanks so much for sharing your knowledge. :)

Melissa Dickerson	23/01/2023
Thank you 😊

Relena Boone-Robinson	08/01/2023
I was under the impression that materials for this item is what was being purchased for 16.00 dollars, not a pdf file. My loss , I was told by the seller no refund. Kaiyoot Response: The description for this item is very clear it is a digital pdf download and that NO materials would be mailed out. When Relena contacted me that she had not received the item, I told her it was a digital pdf download and explained how she could do download it. She then downloaded the instructions and then became upset when she realized no materials were included with the pdf. Had she not downloaded the pdf, I could have given her a refund.

John Kochay	14/09/2022
😊
