Ball Bearing Slide Drink Holder Set for Dream Table

Replacement ball-bearing slides specifically designed for the pop-out modular drink holders on the Kaiyoot Dream Table. These are the exact same high-quality slides used in the original build.

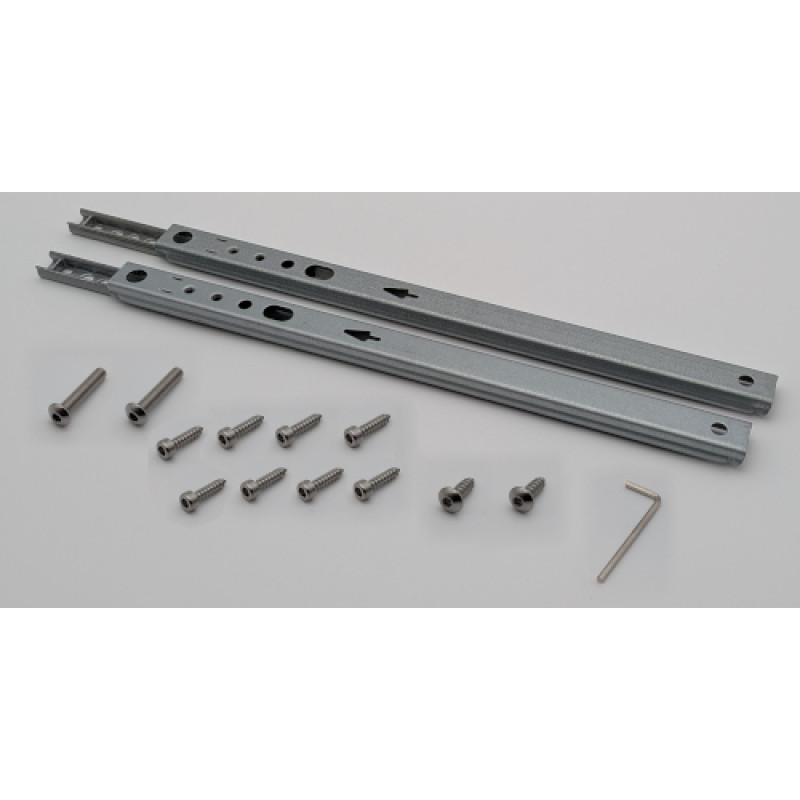

Each set includes everything needed to replace the slides on one pop-out modular drink holder:

• 2 × Ball-bearing Slides – 246mm long - Premium ball-bearing slide for smooth operation and long-lasting durability
• 2 × Hex Socket Button Head Screw - M4x22mm - Used to attach to the end rail of the slides
• 8 × Hex Socket Cup Head Tapping Screw - M3x12mm - Floating point anchors for the slides
• 2 x Hex Socket Button Head Tapping Screw - M4x12mm - Used to attach to the front end of the slides
• 1 x Allen Key M2.5 - Tool for installing above screws (1 per order if multiple sets are ordered)

Compatibility

These slides are made to fit the Kaiyoot Dream Table pop-out modular drink holders perfectly. They provide the smooth, reliable sliding action that allows the drink holders to open and close easily.

Installation Notes

Installation requires two people (Heavy Lift):

1. Flip the Table Top over after removing the Connector bolts holding it down on the outer edge of the interface board.
2. Unscrew the two Hex Socket Button Head Screws at the far end of the drink holder.
3. Position the slide to unscrew the two outside middle Hex Socket Cup Head Tapping Screws.
4. Using a long, thin screw driver, pop the slide off the final outer Hex Socket Cup Head Tapping Screws and pull the drink holder out.
5. Unscrew the two Hex Socket Button Head Tapping Screw which will release the slides from the holder.
6. Reverse the above instructions using the replacement slides.

The slides offer smooth drink holder extension and retraction.

This listing is for 1 complete slide set (enough for one pop-out modular drink holder). If you need slides for multiple drink holders, simply purchase multiple sets.

All parts are in stock and ready to ship. Made to match the original Dream Table specifications for perfect fit and function.

Genuine replacement parts for your Kaiyoot Dream Table – keep your modular pop-out drink holders operating like new!
